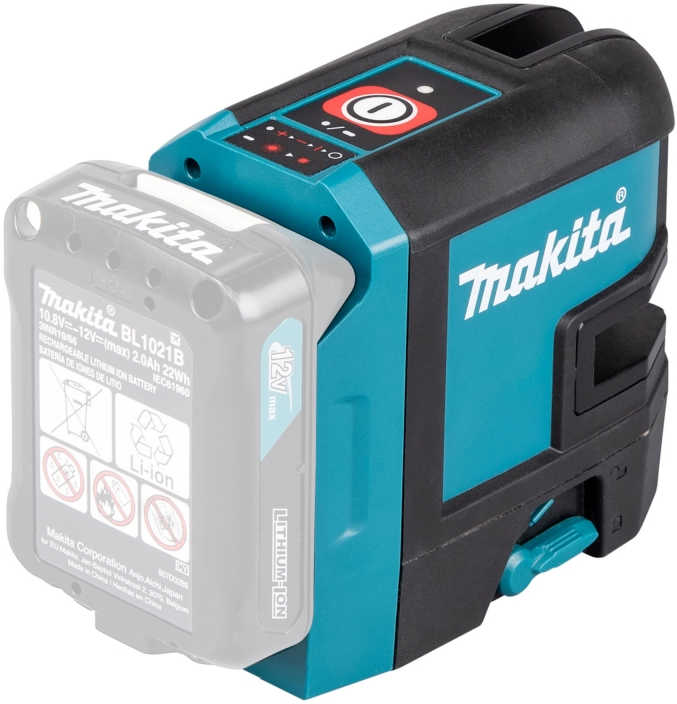

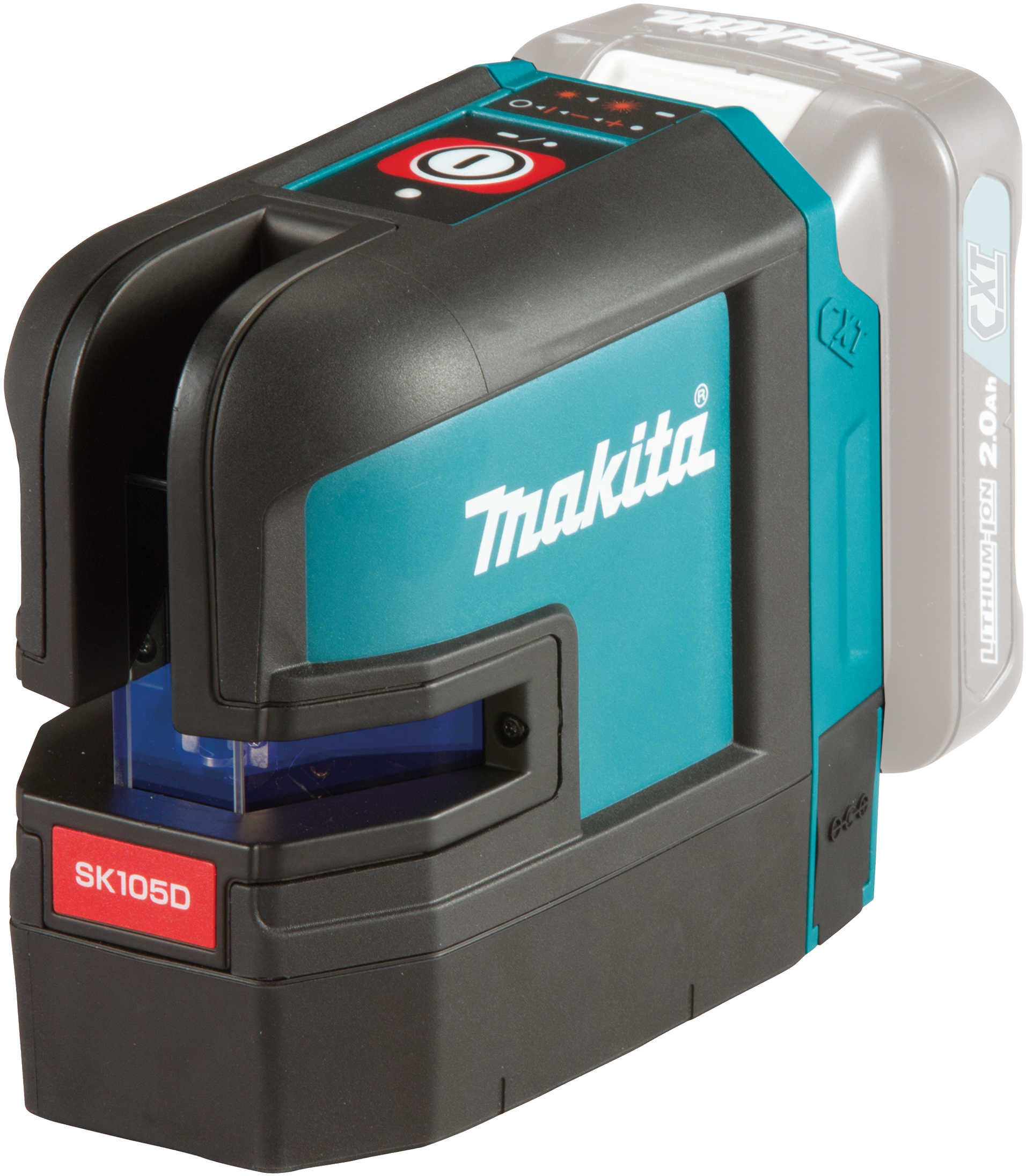

Item Model NumberSK105DZ
Special FeaturesSelectable horizontal/vertical cross reference lines required for level, align and plumb applications
Makita 12V max CXT® 4.0Ah rechargeable battery provides up to 40 hours of continuous run time (battery not included)
Red line visibility range up to 82’ depending on ambient light and detectable up to 262' with Makita Laser Detector LE00855702 (sold separately)
Bright 635 nm Class II red laser with ±1/8” at 33’ for best-in-class accuracy

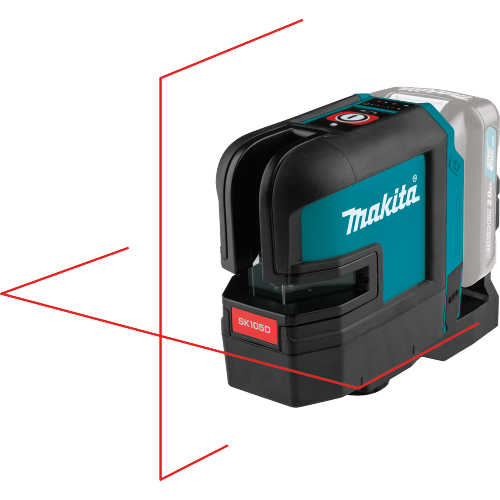

Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
Dust and water resistance with IP54 rating for increased durability
Highly protected laser windows are recessed into the housing for increased durability
Rubberized housing over-mold for increased protection
Simplified one-button user interface for ease of operation
Low laser brightness mode conserves battery power for extended run-time performance
Power connector port allows 18V LXT® Lithium-Ion Battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods (TK0LM1001F and TK0LM5030F)
Battery Protection Circuit protects against overloading, over-discharging and over-heating
Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
Not compatible with 12V max pod-style tools, batteries and chargers
Battery and charger not included
3-year limited warranty
Only use genuine Makita batteries and chargers
Technical Specifications:
Battery: 12V max CXT® Lithium-Ion
Line Accuracy (at 33'): ±1/8"
Line Beam Direction: 2 lines (horizontal, vertical)
Working Range (line): 82'
Working Range with Detector: 262'
Operating Time (hours): 40
Laser Diode: Class II, 635 nm
Levelling Range: 4°
Debris Resistance: IP54 (dust & water resistant)
Auto Shut Off: No
Net Weight (with battery, sold separately): 0.86 kg
Laser Beam Color: Red
Packaged Depth: ء 120 mm
Packaged Height: 140 mm
Packaged Width: 220 mm
Shipping Weight: 1.01 kg

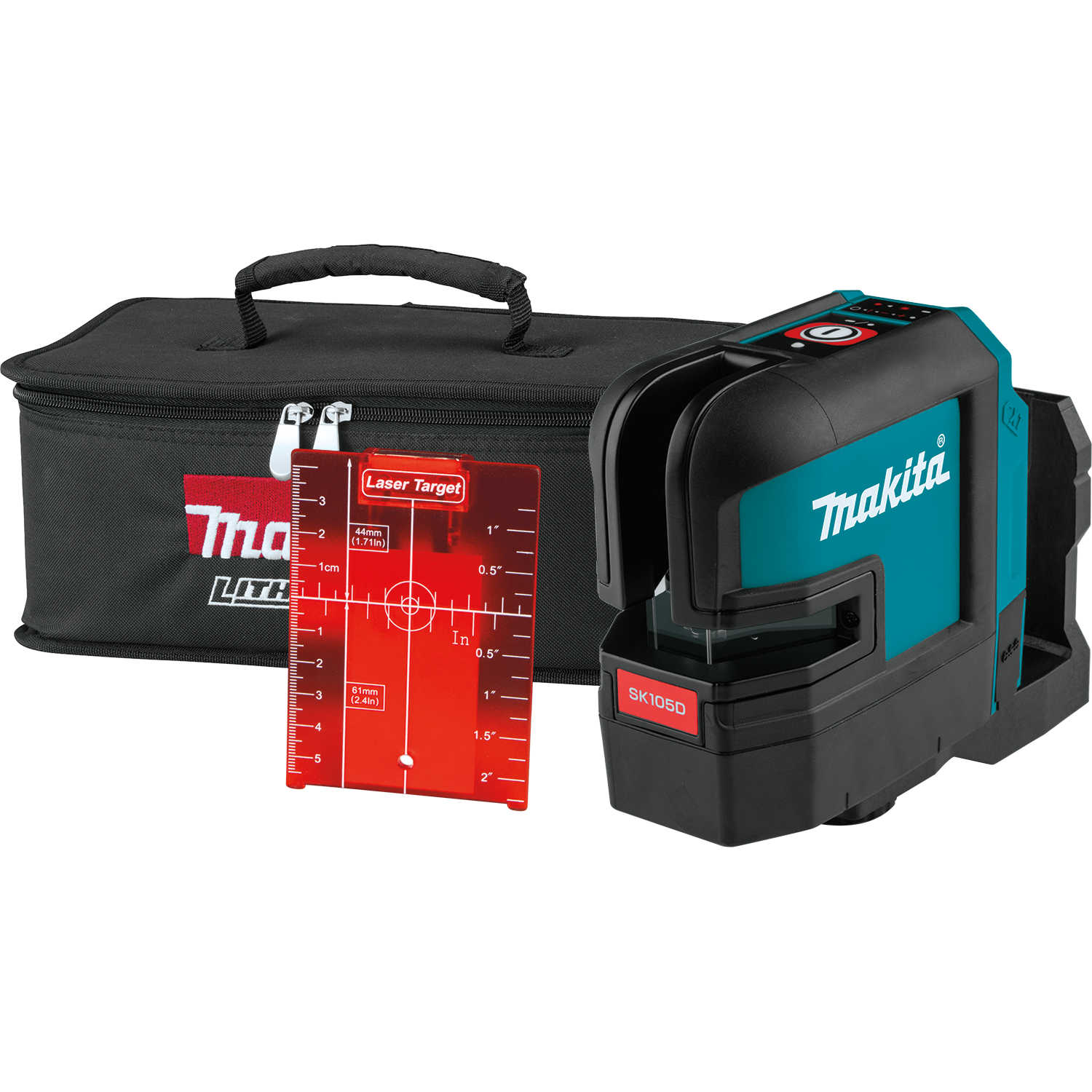

Includes:
(1) Magnetic L-Adapter (LE00870131)
(1) Magnetic Red Target Plate (LE00785638)
(1) Storage Pouch
ManufacturerMakita
Warranty & SupportCheck Osta Warranty Page
Return PolicyOsta Return Policy
Country of OriginJapan
