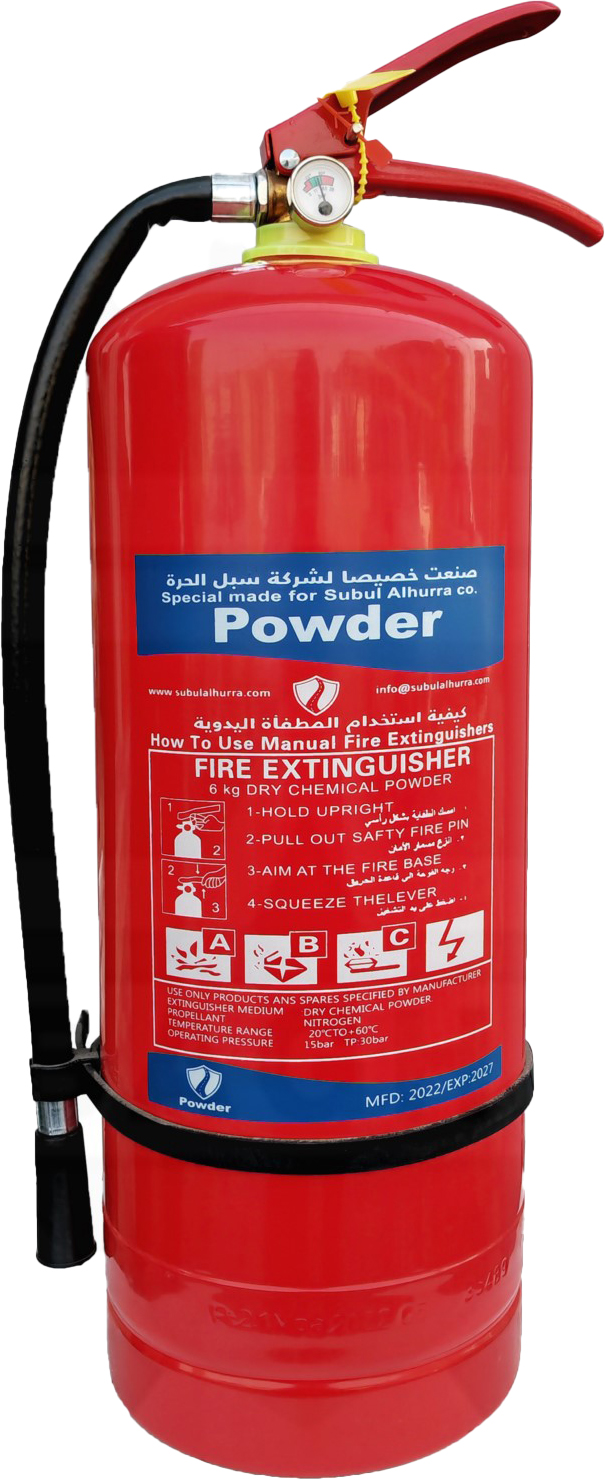

Item Model NumberOSMQ100
Product DimensionsHeight:405–585 mm (Common: 515–550 mm),Cylinder Diameter:150–162 mm,Cylinder Volume:7–7.9 liters
MaterialCylinder Material:Steel (typically St12),Valve Material:Brass (e.g., HPb59-1),Internal Polyethylene Lining:Present in some models for corrosion resistance
ColorRed
Capacity6 kg ABC Dry Powder
Item Package Quantity1
Special FeaturesWall mount bracket for installation
Squeeze-grip operation
Corrosion-resistant exterior finish
Included ComponentsFire extinguisher cylinder
Valve assembly
Wall mount bracket
Specifications MetEN3/BS EN3,CE,Kitemark,MED,BSI,LPBC (depending on region)
ManufacturerChinese
Warranty & SupportCheck Osta Warranty Page
Return PolicyOsta Return Policy
PropertiesWorking Pressure:12–15 bar (@20°C),Test Pressure:18–27 bar,Operating Temperature Range:-30°C to +60°C (sometimes broader: -50°C to +50°C),Discharge Range:Approximately 5–6 meters,Fire Ratings:Solid Combustibles (A):27A–43A,Flammable Liquids (B):144B–233B,Electrical (C/E):Safe up to 1,000V–35,000V
Usage TimeDischarge Time: 16–20 seconds
Temperature-30°C to +60°C (sometimes -50°C to +50°C)
Country of OriginChina
